Printing Performance
Servo control, precise positioning, optional cold foil, laminating, screen printing, corona, and inspection modules for demanding label work.
Guangzhou Hochen Machinery Technology Co., Ltd.
Reliable label printing machinery for global production teams.
Hochen Tech combines precision engineering, disciplined manufacturing, and responsive service to help customers build stable, efficient label printing and converting lines.
- 25+
- Years of industry focus
- 500+
- Partner cases worldwide
- 48h
- Quick service response
Intermittent flexographic printing line
HCF350 / 450
What We Build For
Practical machinery solutions from design to after-sales support.
Production Efficiency
Equipment designed for fast setup, short material path, steady feeding, and low waste across small-to-medium batch production.
Project Support
Engineering, machining, assembly, inspection, installation guidance, and after-sales communication managed as one connected process.
Product Lines
Equipment for label printing and converting.
Start with a standard platform, then configure the modules that match your process, material, speed, and finishing requirements.
HCF350 / HCF450
Intermittent Flexographic Printing Machine
A modular line for labels and flexible packaging with optional turn bar, cold foil, rotary die cutting, laminating, and touch-screen control.

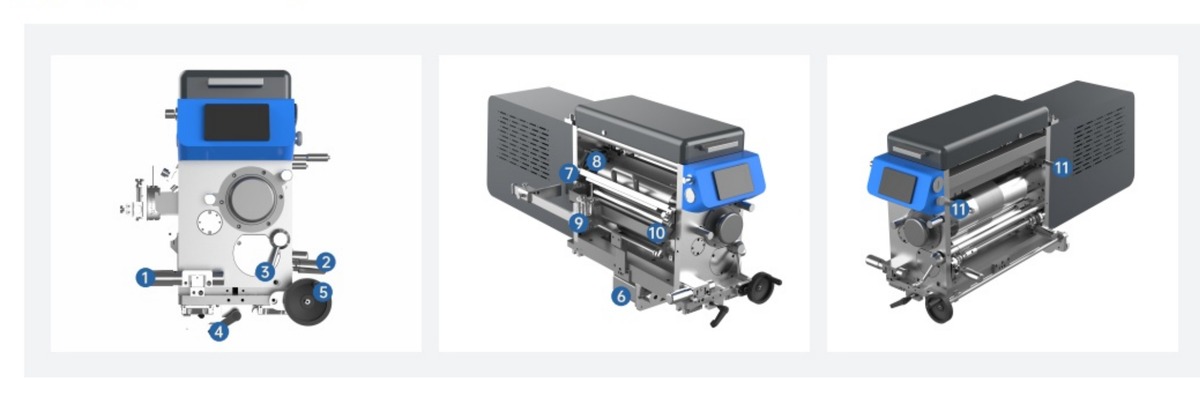

HCF Functional Modules
Flexible Printing and Finishing Modules
Configure screen unit, two-side printing, cold foil, turn bar, rotary die cutting, laminating rack, web guide, ink tray, and automatic register modules for different order requirements.
HCL350-6C
Intermittent Rotary Label Printing Machine
Independent servo register, touch-screen control, separate tension control, and eccentric printing pressure control for stable label production.
Custom Projects
Printing and Finishing Production Lines
Integrated configurations for customers who need printing, inspection, laminating, die cutting, rewinding, and tailored workflow support.

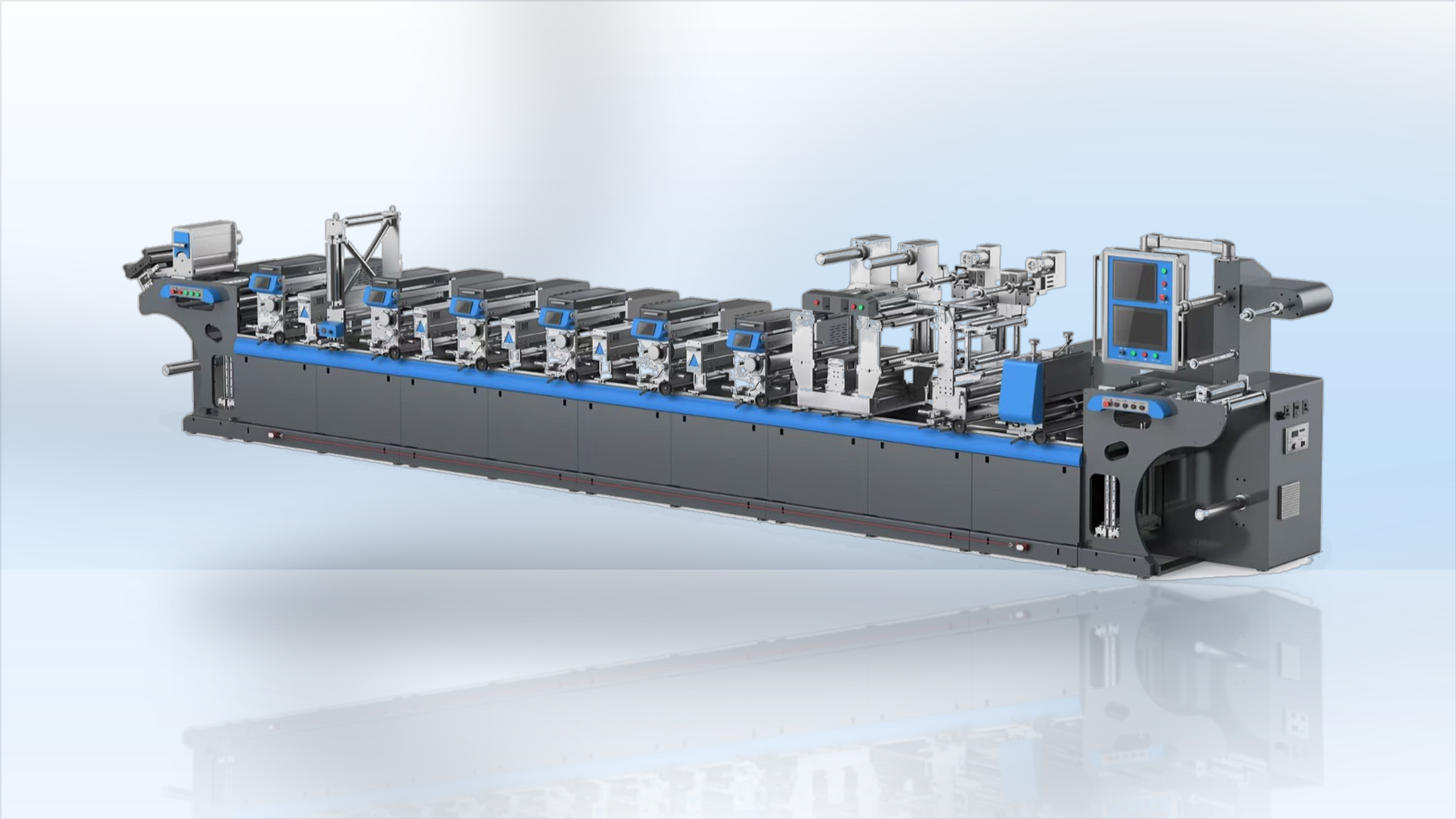

HCF350 / HCF450 Details
Intermittent flexo platform for labels and small-to-medium packaging.
The HCF series supports sleeve-type plate cylinder structure, quick order changeover, precise linear paper feeding, automatic register, and modular finishing options for different label and packaging jobs.
| Specification | HCF350 | HCF450 |
|---|---|---|
| Feeding width | 350mm | 450mm |
| Intermittent printing area (Max) | 340mm(W) * 370mm(L) | 440mm(W) * 450mm(L) |
| Full rotary printing area (Max) | 340mm(W) * 419mm(L) | 440mm(W) * 508mm(L) |
| Max material diameter | 800mm | 800mm |
| Intermittent printing area (Min) | 80mm * 80mm | 80mm * 80mm |
| Colors | 6C-12C | 6C-12C |
| Anilox roller diameter | 80T | 80T |
| Number of plate teeth | 132T | 160T |
| Plate thickness | 1.14mm or 1.7mm | 1.14mm or 1.7mm |
| Double tape thickness | 0.38mm | 0.38mm |
| Printing speed | 250 times/min or 60m/min | 200 times/min or 80m/min |
| Full rotary speed | 132T, 80m/min | 160T, 80m/min |
| Rated power | 21KW | 25KW |
| Main machine power | 200VC, 50/60HZ 20A | 200VC, 50/60HZ 20A |
| UV power | UV 5KW/unit, LED 2.5KW/unit | UV 5KW/unit, LED 2.5KW/unit |
| Machine size | Follow drawing | Follow drawing |
| Machine weight | About 4,500KG | About 5,000KG |
Standard Functions
- Anilox moving when machine stop
- Air shaft core and pneumatic nip roller
- Automatic web guide and repeat printing
- Web camera, dust removal, and static killer
- Rewinding with lamination function
Optional Modules
- Corona
- Pre-register
- Y-direction motor move
- Automatic register
- Cold foil
- Rotary die cutting
- Intermittent lamination
- Glue side printing
- Silk screen printing
- Removable turn bar
- LED UV drying
- UV chiller
- Automatic loading and unloading
- Camera mounting table
- Loading forklift
- Air compressor
- Voltage stabilizer
Model Selection
HCF350 is suitable for label and small-size packaging orders where 350mm print width covers most daily production needs with a smaller equipment footprint.
HCF450 is suitable for larger packaging such as medium-size food bags and daily chemical boxes, giving wider format flexibility for more varied orders.

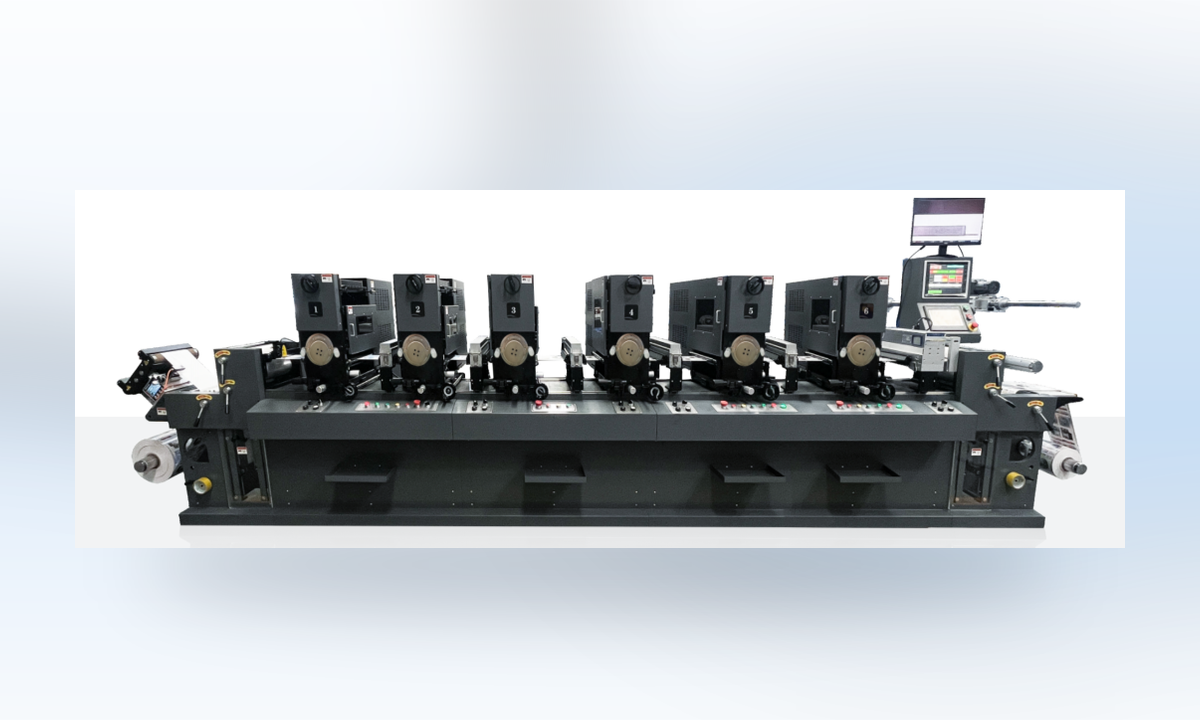

HCL350-6C Details
Intermittent rotary letterpress for label printing.
The HCL350-6C uses independent servo register, touch-screen control, independent tension control, and a cast frame. Optional modules include cold foil, rotary die cutting, turn bar, back printing, and LED UV.
| Specification | Chinese Name | HCL350-6C |
|---|---|---|
| Maximum Web Width | 最大幅宽 | 350mm |
| Maximum Printing Width | 最大打印宽度 | 340mm |
| Minimum Printing Length | 最小印刷长度 | 50mm |
| Max Intermittent Printing Length | 最大间歇印刷长度 | 370mm |
| Max Full Rotary Printing Length | 最大全轮印刷长度 | 419mm |
| Max Speed | 最大速度 | 15,000 times/hour or 40m/min |
| Max Rewind Diameter | 最大收卷直径 | 600mm |
| Machine Power | 机器功率 | 24KW |
| Machine Size | 机器尺寸 | 6,300mm x 1,500mm x 1,300mm |
| Machine Weight | 机器重量 | 5000KG |
| Power Requirement | 电源要求 | Three-phase 200V |
Performance
- Independent servo register system
- Touch-screen controls register and ink feeding speed
- Independent tension control improves printing reliability
- Eccentric printing pressure control for fast plate changes
- Cast frame minimizes vibration for stable operation
- Long intermittent printing length up to 370mm
Optional Modules
- High-speed sheeter
- Inkjet digital
- Corona machine
- Cold foil
- Rotary die cut
- Flexo printing
- Back printing
- Turn bar
- LED UV
Best Fit
Designed for label printers that need stable registration, long intermittent repeat length, and flexible finishing modules.
Cold foil, die cutting, back printing, inkjet, and LED UV modules can be configured according to job requirements.
Quality System
Strong products come from strong details.
From concept and design to machining, assembly, inspection, and service, every stage is managed with clear standards and practical attention to customer requirements.
- Experienced engineering and technical teams
- Disciplined assembly and inspection process
- Responsive project communication for overseas partners
- Continuous improvement in technology and production workflow

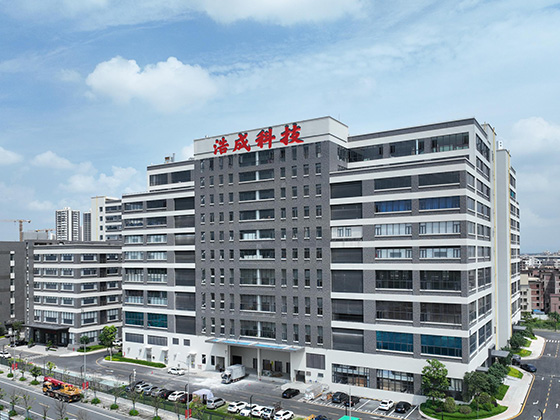

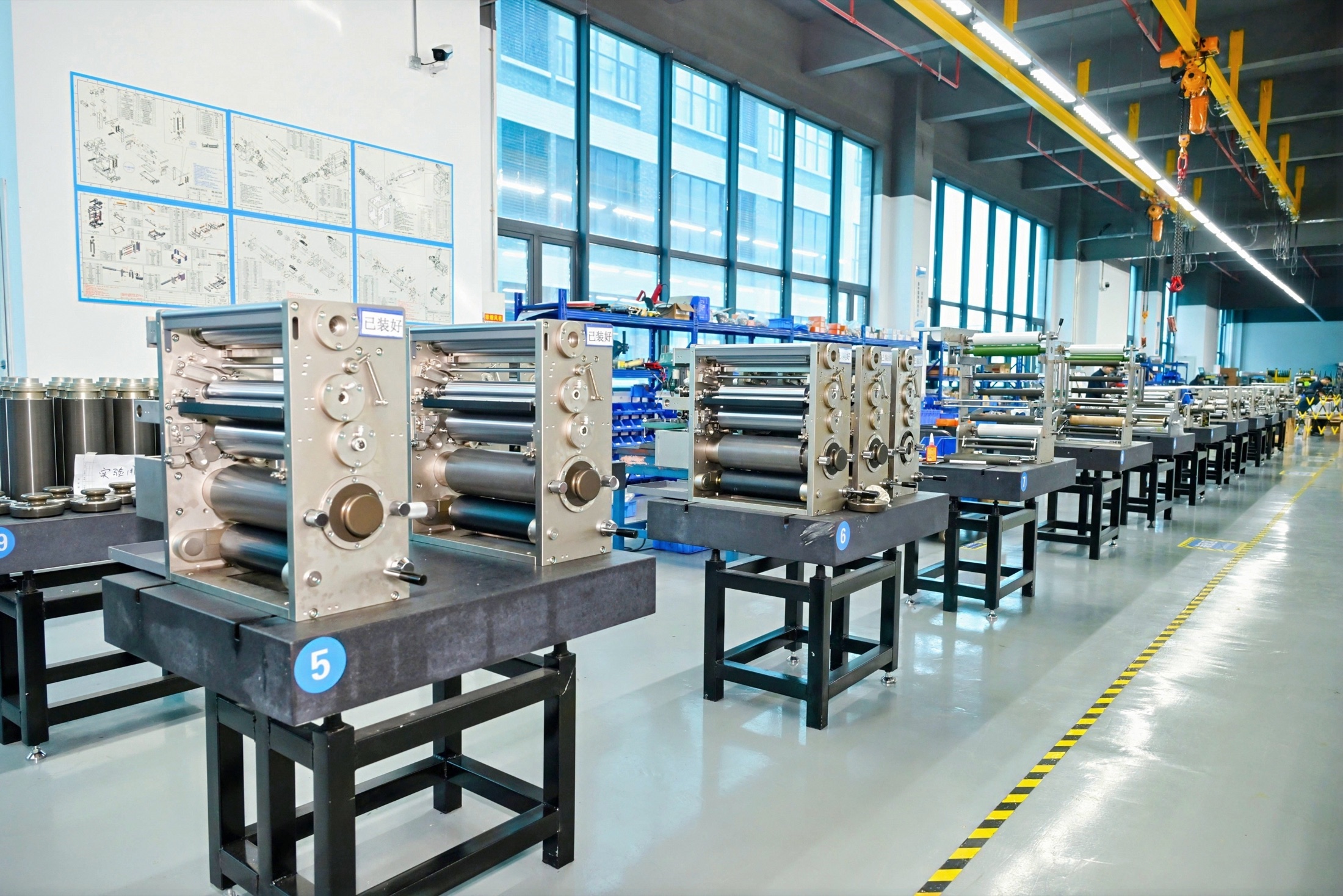

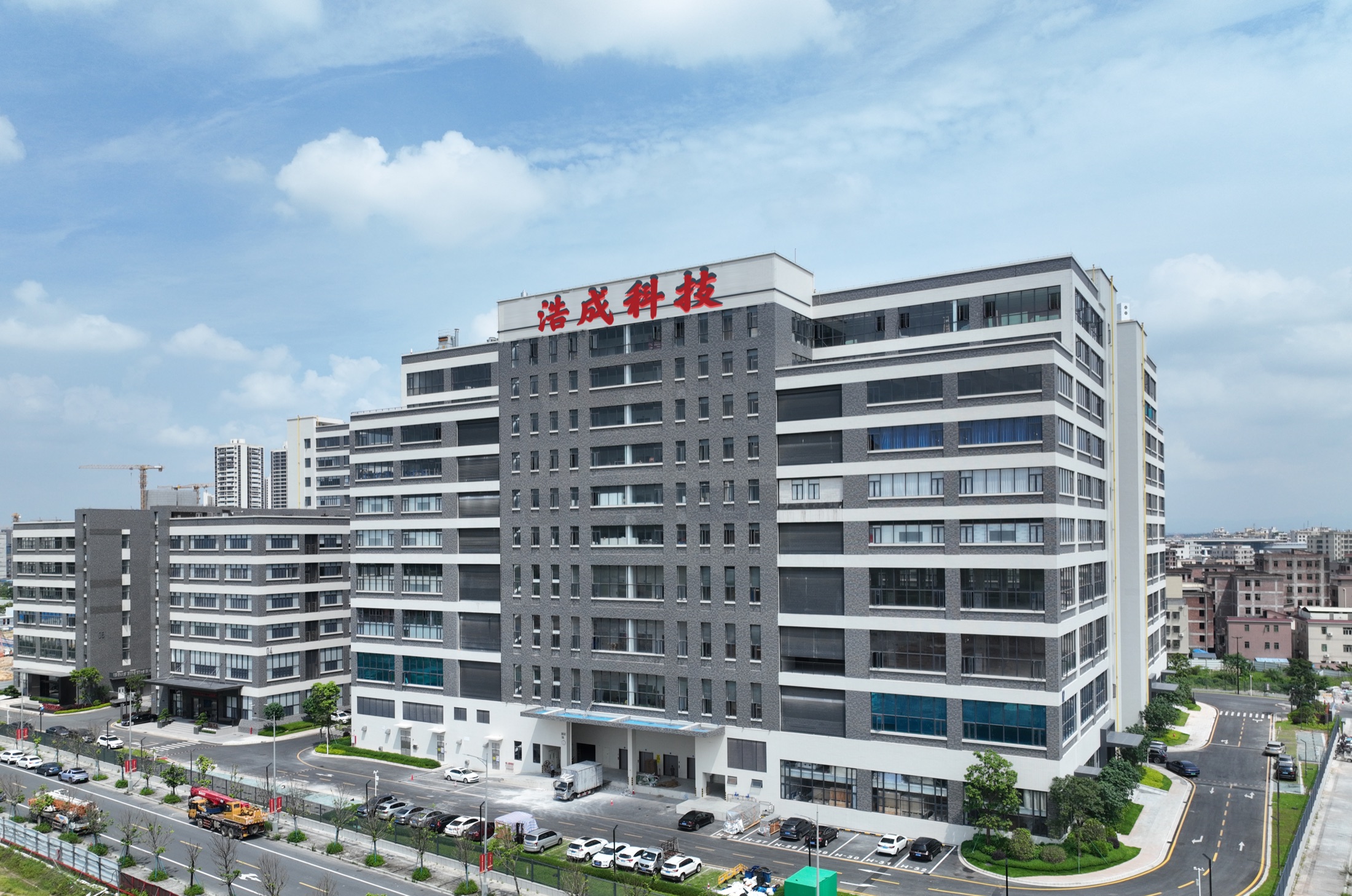

Production Base

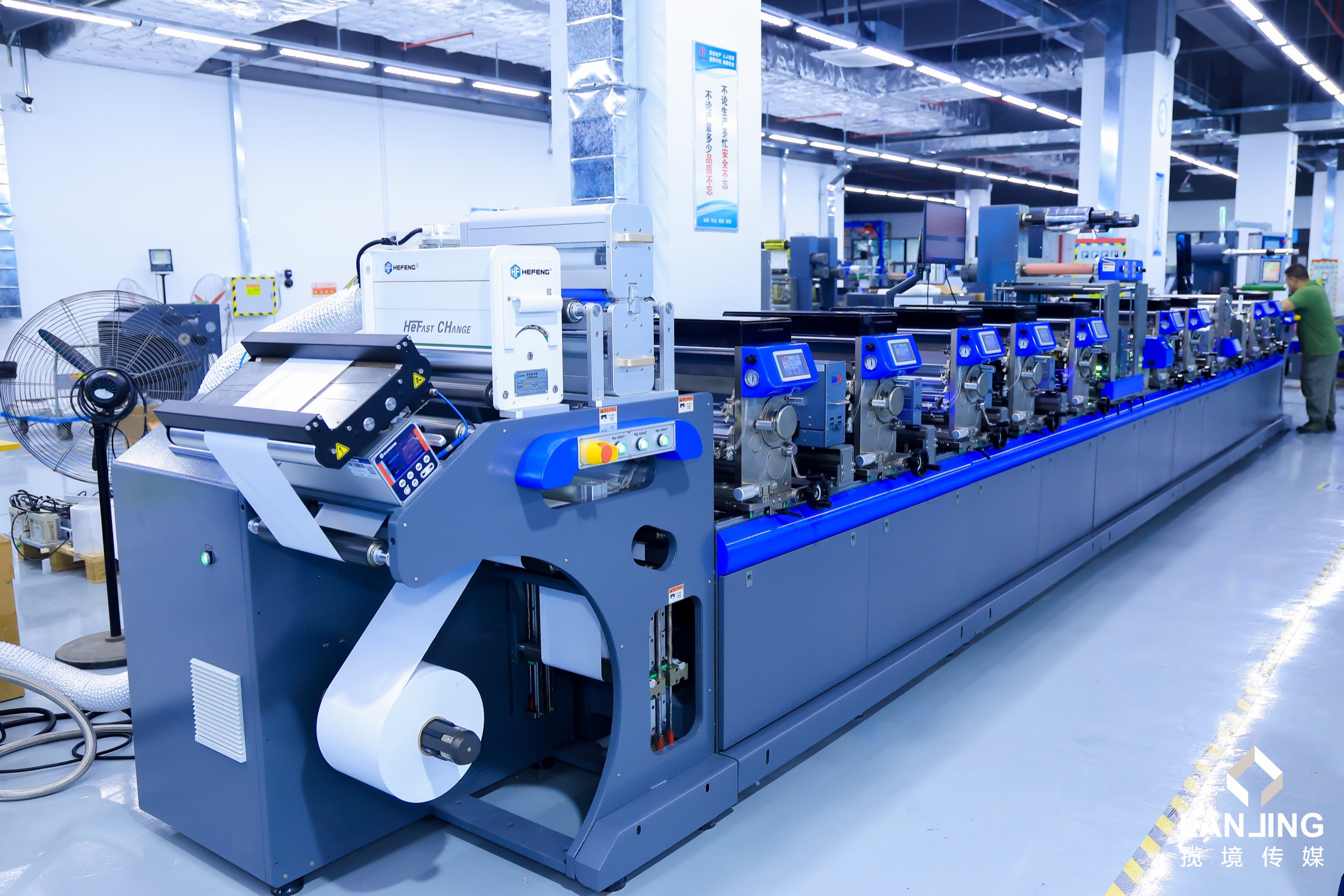

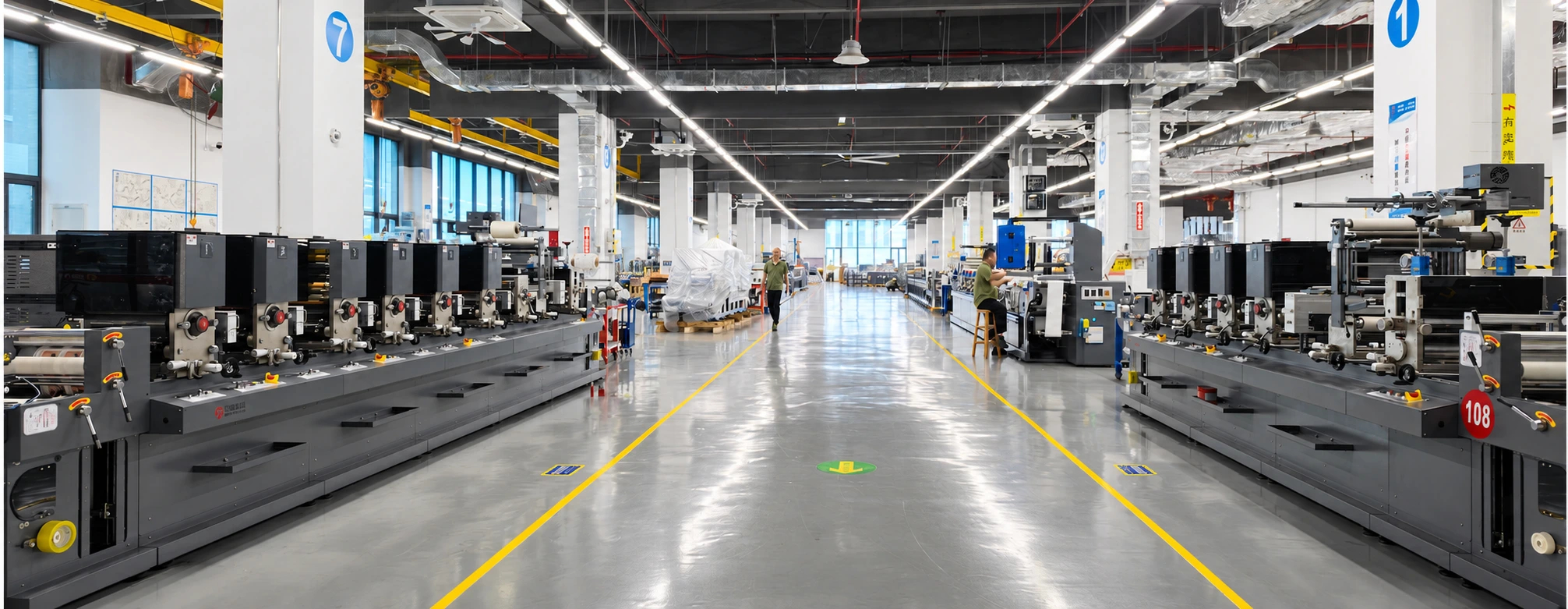

A clean, organized workshop built for reliable machinery output.
Real production capacity matters. Hochen Tech supports projects with a modern factory environment, organized assembly areas, and dedicated technical teams.
Global Trust
Built for partners who need dependable communication and visible proof.
Hochen Tech presents equipment at international label exhibitions, shares industry perspectives in public forums, supports overseas partners, and continues to strengthen product reliability through patents, certificates, and process improvement.
G7
Color management certification materials

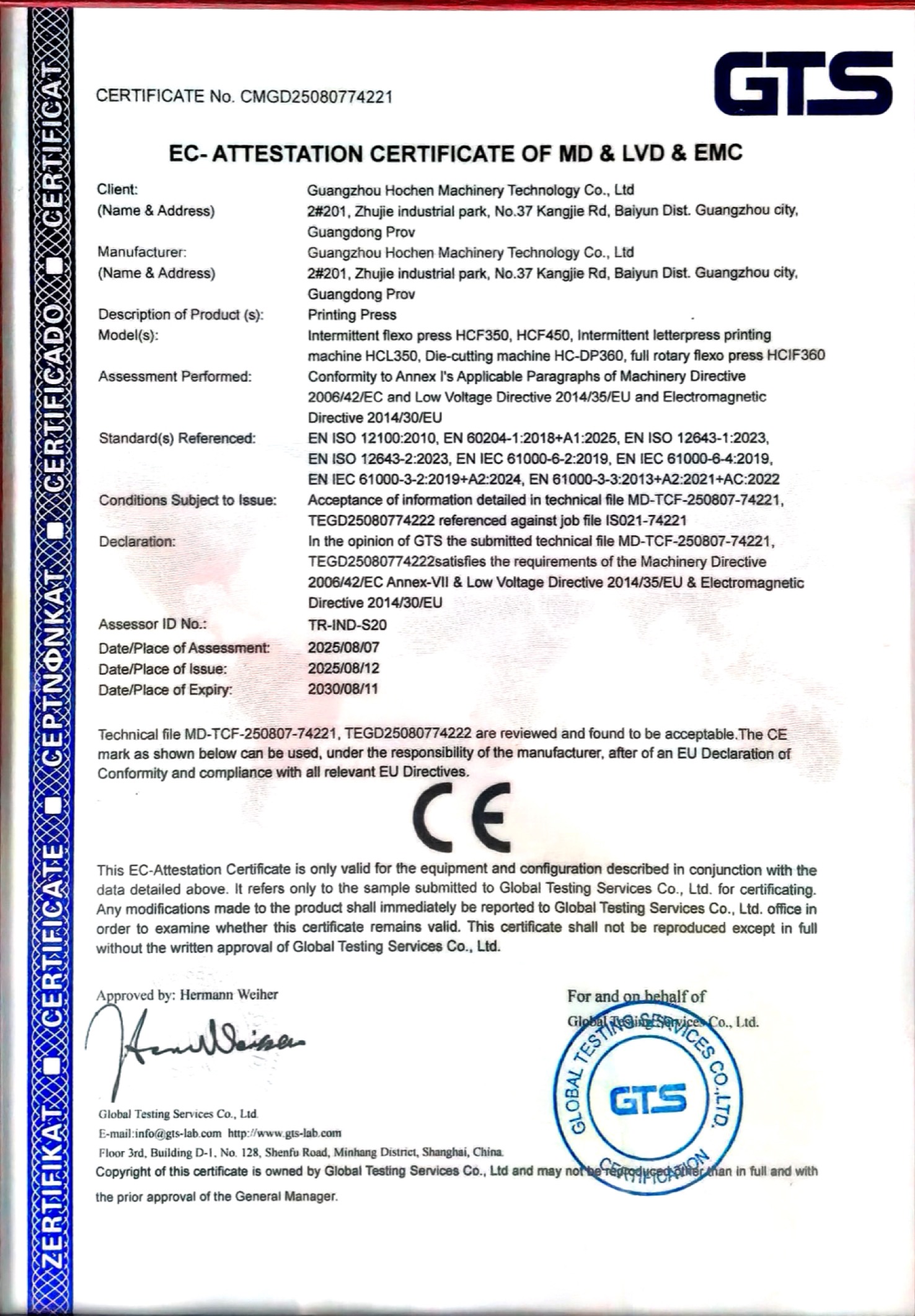

CE
EU CE compliance certification materials

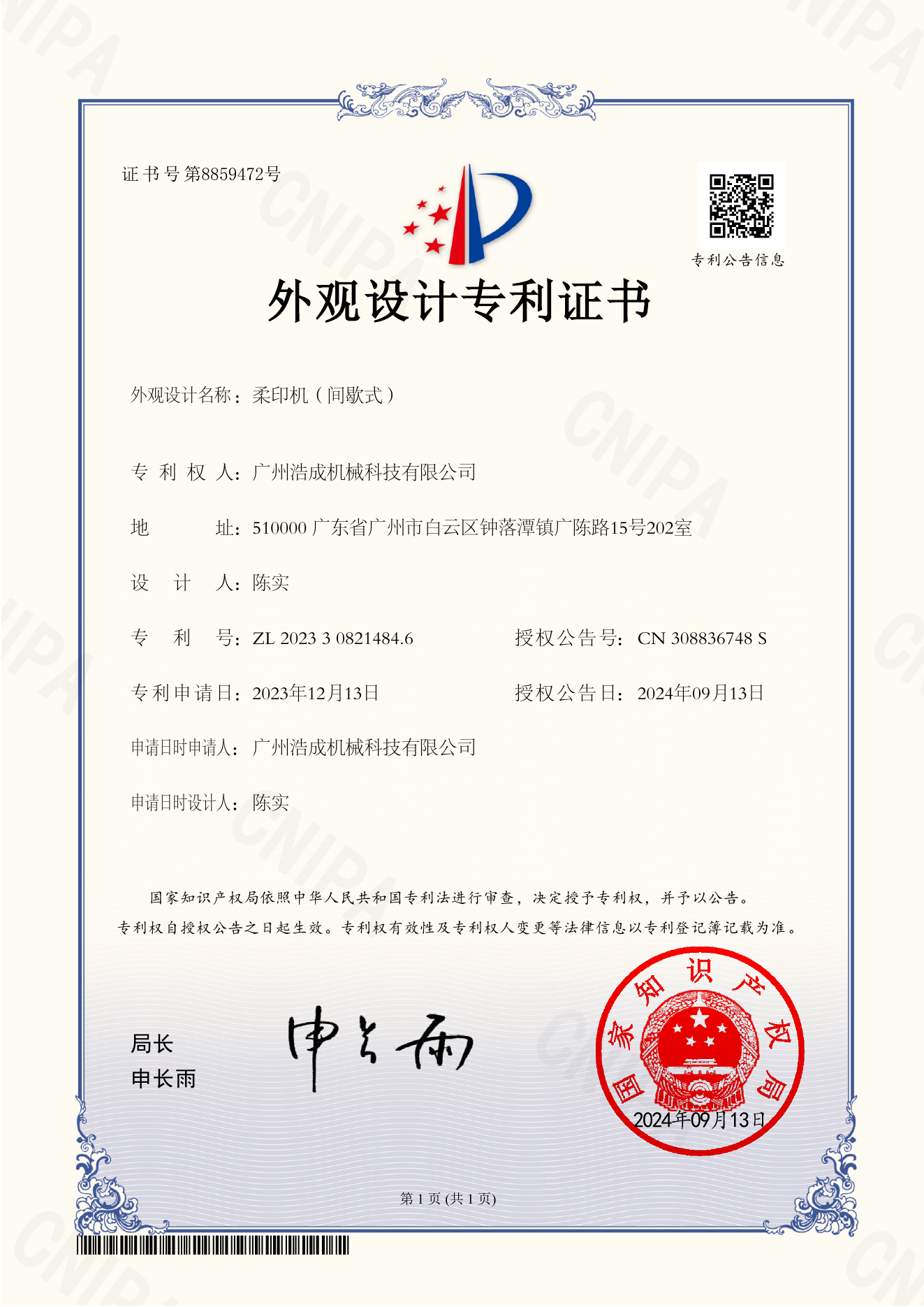

IP
Patents covering printing and control technologies
AAA
Enterprise credit evaluation record
Company Video
See Hochen Tech in motion.
Start a Project
Tell us your label production requirements.
Share your material, label size, speed target, finishing modules, and destination market. The Hochen team will recommend a practical equipment configuration.
